| Model |
Version Description |
Part # |
|
| Call Extron for part numbers and prices |
|
|
|
| SCP 100 (gray) |
|
60-270-01 |
Retired |
| SCP 100 (black) |
|
60-270-02 |
Retired |
| SCP 100 (white) |
|
60-270-03 |
Retired |
This product has been retired.
Specifications
-
| Control/remote — control pad |
|---|
| IR controller module | IR 401 (optional) |
| General |
|---|
| Power | 12VDC, at 60 mA, from the System |
| 5cr Plus switcher |
| Temperature/humidity | Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, non-condensing |
| Operating +32° to +122°F (0° to +50°C) / 10% to 90%, non-condensing |
| Rack mount | No, but furniture/wall mountable with included faceplates and electrical boxes |
| or optional mounting bracket kits or AAP wall plates. |
| Enclosure type | Metal |
| Enclosure dimensions | |
| Plate | 4.5" H x: 4.6" W x 0.1" D (2 gang) |
| 11.4 cm H x: 11.7 cm W x 0.3 cm D |
| Box | 3.75" H x: 3.63" W x 3.5" D |
| 9.5 cm H x: 9.2 cm W x 8.9 cm D |
| Boards | 2.9" H x: 3.5" W x 0.8" D |
| 7.4 cm H x: 8.9 cm W x 2.0 cm D |
| (Allow at least 1.5" (3.8 cm) depth in the wall or furniture.: Depth |
| excludes connectors and knobs.) |
| Product weight | 0.3 lbs (0.1 kg) |
| Shipping weight | 3 lbs (1.4 kg) |
| Vibration | ISTA/NSTA 1A in carton (International Safe Transit Association) |
| Listings | UL, CUL as a component of the System |
| 5cr Plus |
| Compliances | CE as a component of the System |
| 5cr Plus |
| MTBF | 30,000 hours |
| Warranty | 3 years parts and labor |
| (7.31-111501-D1) | |

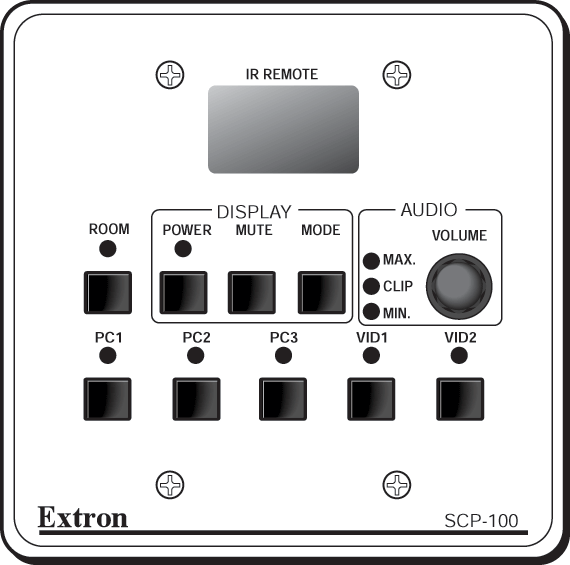

Panel Drawing
