MVGA-A M-F Retired

Male to Female VGA Micro HR with Audio Cables
Key Features
  • Certified for use with Cable Cubby and HSA surface access enclosures
  • Pin 9 is passed through from end to end
  • Terminated with high quality molded VGA connectors and 3.5 mm connectors for audio
  • VGA shell grounded for ESD electrostatic discharge protection
  • Injection mold with overall foil shield for improved EMI - electromagnetic interference isolation
  • AWM 20276 rated, non-plenum cable
The Extron MVGA-A M-F
Model Version Description Part #
 MVGA-A M-F/3 3' (90 cm) 26-565-01 Retired
 MVGA-A M-F/6 6' (1.8 m) 26-565-02 Retired
 MVGA-A M-F/12 12' (3.6 m) 26-565-03 Retired
 MVGA-A M-F/25 25' (7.6 m) 26-565-04 Retired

This product has been retired.

The Extron MVGA-A M-F uses micro high resolution coax cable with a 15-pin HD male connector and audio cable with a 3.5 mm mini plug on one end, and a 15-pin HD female connector and audio cable with a 3.5 mm mini plug on the other end. On one side, the audio cable is 24 inches long, and on the other side, the audio cable is 8 inches long. All ID bits are passed through this cable and pin 9 of the 15-pin HD male connector effectively becomes a +5VDC power source, provided the computer has a graphic card that complies with the VESA DDC standard, version 3. This cable is extremely thin and flexible with very small VGA connectors, making it ideal for use with Extron HSA and Cable Cubby® products.

Features

  • Certified for use with Cable Cubby and HSA surface access enclosures
  • Pin 9 is passed through from end to end
  • Terminated with high quality molded VGA connectors and 3.5 mm connectors for audio
  • VGA shell grounded for ESD electrostatic discharge protection
  • Injection mold with overall foil shield for improved EMI - electromagnetic interference isolation
  • AWM 20276 rated, non-plenum cable
SIMILAR PRODUCTS
  MVGA M-M Male to Male Micro VGA Cables
  MVGA-A M-M Male to Male 15-pin HD Micro HR with Audio Cables
  VGA M-F BK Male to Female VGA Cables - Backshell Connectors
  VGA M-F MD Male to Female VGA Cables - Molded Connectors
  VGA M-M BK Male to Male VGA Cables - Backshell Connectors
  VGA M-M MD Male to Male VGA Cables - Molded Connectors
  VGA-A M-M MD Male to Male VGA and Audio Cables - Molded Connectors

Panel Drawing

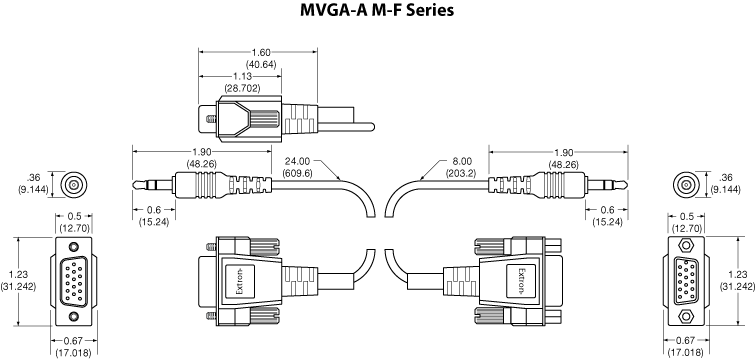

MVGA-A M-F Panel Drawing
