VGA-A 90UF-M MD Series Retired

Male to Female 90° Up VGA Molded Connectors with Audio Cables
Key Features
  • Certified for use with Cable Cubby and HSA surface access enclosures
  • High performance cable designed for transmission of computer video, audio, and ID bit signals
  • Pin 9 is passed through from end to end
  • Terminated with high quality 90° molded upward and standard molded VGA connectors, and 3.5 mm mini stereo male connectors for audio
  • VGA shell grounded for ESD electrostatic discharge protection
  • Injection mold with overall foil shield for improved EMI - electromagnetic interference isolation
The Extron VGA-A 90UF-M MD Series
Model Version Description Part #
 VGA-A 90UF-M MD/3 3' (90 cm) 26-509-24 Retired
 VGA-A 90UF-M MD/6 6' (1.8 m) 26-509-25 Retired
 VGA-A 90UF-M MD/12 12' (3.6 m) 26-509-26 Retired

This product has been retired.

The Extron VGA-A 90UF-M MD Series uses Extron MHRVGA Cable with a 90 degree upward 15-pin HD female connector and an audio cable with a stereo mini plug on one end and a male 15-pin HD connector with stereo mini plug on the opposite end. On one side, the audio cable is 24 inches long, and on the other side, the audio cable is 8 inches long. The 90° angle connector enable low profile cable connections to a 15-pin HD interface or mountable DA in an upward (indicated as "90U" in description) direction. Pin 9 is passed through for +5VDC power.

Features

  • Certified for use with Cable Cubby and HSA surface access enclosures
  • High performance cable designed for transmission of computer video, audio, and ID bit signals
  • Pin 9 is passed through from end to end
  • Terminated with high quality 90° molded upward and standard molded VGA connectors, and 3.5 mm mini stereo male connectors for audio
  • VGA shell grounded for ESD electrostatic discharge protection
  • Injection mold with overall foil shield for improved EMI - electromagnetic interference isolation
  • Utilizes Extron MHRVGA Cable, part # 22-220-03
  • NEC CM rated
SIMILAR PRODUCTS
  MVGA M-M Male to Male Micro VGA Cables
  MVGA-A M-M Male to Male 15-pin HD Micro HR with Audio Cables
  VGA M-F BK Male to Female VGA Cables - Backshell Connectors
  VGA M-F MD Male to Female VGA Cables - Molded Connectors
  VGA M-M BK Male to Male VGA Cables - Backshell Connectors
  VGA M-M MD Male to Male VGA Cables - Molded Connectors
  VGA-A M-M MD Male to Male VGA and Audio Cables - Molded Connectors

Panel Drawing

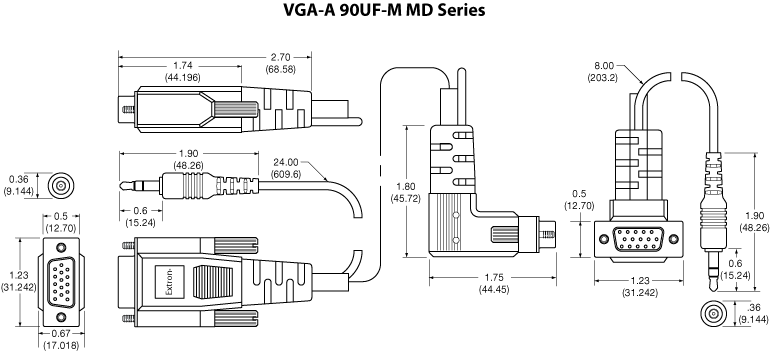

VGA-A 90UF-M MD Series Panel Drawing
